Kidde Commercial

Fire alarm systems. Aspirating detection. To UL.

The Evolve Series addressable fire alarm system, and ModuLaser, MiniLaser and Senator aspirating smoke detection, for North America.

Meet EvolveAspirating detection
Kidde Commercial Evolve Series fire alarm panels
Evolve Series

Advanced where it matters. Simple where it counts.

The Kidde Commercial addressable fire alarm system: enterprise-level capability for small and mid-sized sites, designed to be installed and maintained easily.

  • 10-inch touchscreen display, which can carry your customer's logo
  • Backwards compatible: replace a legacy panel without replacing the existing wiring and conduit
  • Electronic addressing with automatic device mapping, and Ethernet connectivity
  • Designed for software upgrades

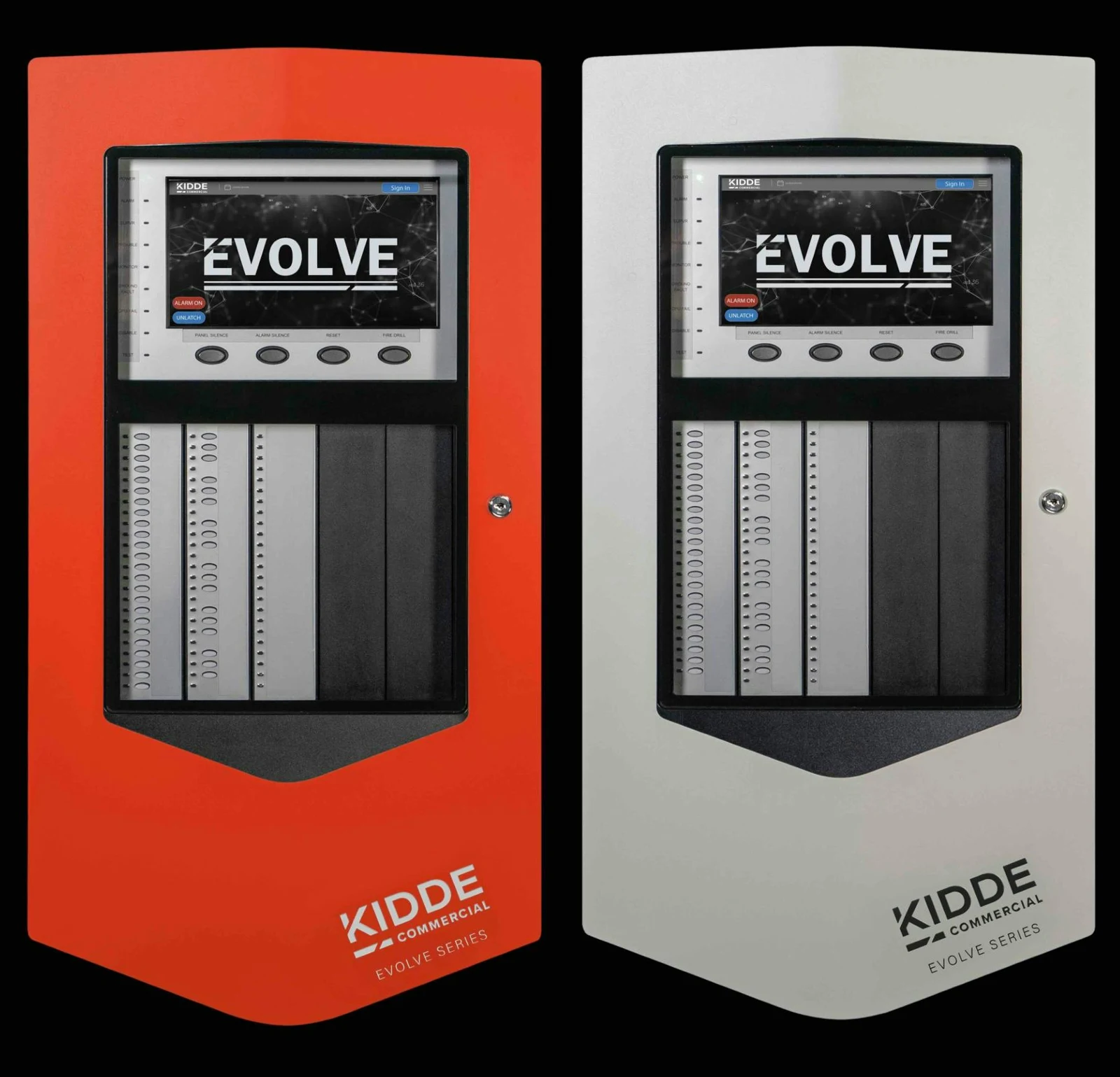

Evolve Series fire alarm panels
1,000addresses: four loops of 250
10″touchscreen user interface
6 + 72programmable virtual switches: six on the base panel, up to 72 more
4Class A/B configurable notification appliance circuits
Evolve devices

Everything on the loop.

The panel and the devices it works with.

Genesis LED notification
Genesis LED notificationHorns, strobes and horn-strobes, indoor and outdoor. Compatible with Evolve; low current draw for longer wire runs.
Evolve panel
Evolve panelBase panel with one Class A/B loop of 250 addresses, expanded to 1,000 with loop controller modules.
30
AnnunciatorsRemote annunciators, up to 30 on one system.
RZI16-2
Retrofit moduleAdds 16 conventional device circuits when you upgrade an older system.

Evolve supports intelligent modules and detectors; strobe synchronization is UL 1971 compliant. Genesis LED outdoor models are NEMA 4X / IP66 UL listed, with up to 115 candela. Panel features: USB-C programming port and built-in Ethernet for central station monitoring (NFPA 72 Chapter 26). Listings, approvals and availability depend on the product version and the project. Your Kidde Global Solutions contact will confirm what applies to your specification.

Aspirating smoke detection

ModuLaser, MiniLaser and Senator.

Very early warning for the spaces where a spark must never become a fire.

  • ModuLaser UL: UL, ULC, CSFM and FM; designed to UL 268; up to 250 m (820 ft) of pipe and 50 holes per detector module
  • MiniLaser UL: UL and ULC; single zone; up to 122 m (400 ft) of pipe, 35 holes, coverage up to 1,500 m2 subject to local approvals
  • Senator 25 and 100: high sensitivity, UL and FM listed
Full UL range
Kidde Commercial ModuLaser and MiniLaserKidde Commercial ModuLaser and MiniLaser
Kidde Commercial UL range

Pick the detector.

ModuLaser detector module
ModuLaser detector moduleMulti-zone, one module per zone.9-30783-KID-ULF
MiniLaser
MiniLaserSingle zone, up to 1,500 m².9-30501-KID-ULF
Senator 25
Senator 25High sensitivity, UL and FM. The -7 version is UL approved to UL 268 7th Edition.9-30671-7-KID-ULF

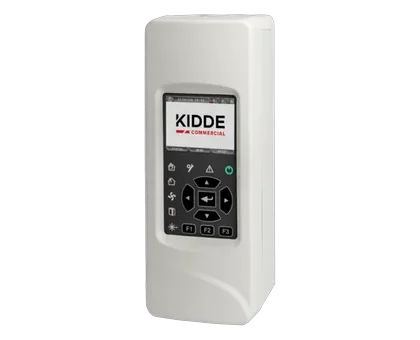

Standard display module
Standard display moduleModuLaser display.9-30781-KID-ULF

Listings, approvals and availability depend on the product version and the project. Your Kidde Global Solutions contact will confirm what applies to your specification.

Where it protects

Spaces where early warning matters most.

Aspirating detection samples the air continuously, so it finds smoke at the very first stage, in rooms where a conventional detector would be late.

Data centresServer rooms and white space
WarehousesHigh bays and racked storage
Laboratories and plantsClean, sensitive and process areas
Retail and public spacesAtria and high ceilings
Historic buildingsProtection that leaves no mark

Planning a project?

Tell us about the site and we will help with the fire alarm system, the detection, or both.

Talk to our team
