ASPIRATING SMOKE DETECTION

ModuLaser

A high-performance, multi-channel aspirating smoke detection system for new installations, retrofits and extensions in large, complex and demanding applications, available across the AirSense, Kidde Commercial and Edwards ranges.

m

Sampling pipe per detector module

Detector modules via Command display

0.003-10 µm

Particle sensitivity range

20,000

Events logged per module

Build your system

Pick a module. See what it does.

ModuLaser pairs one of three display modules with detector modules on a shared SenseNET network. Select a component to see its capacity and what it does.

Minimum displayStatus LEDs onlyStandard displayColour TFT + navigationCommand displayNetwork controlDetector moduleLaser sensing unitAPIC cardLink to the fire panel

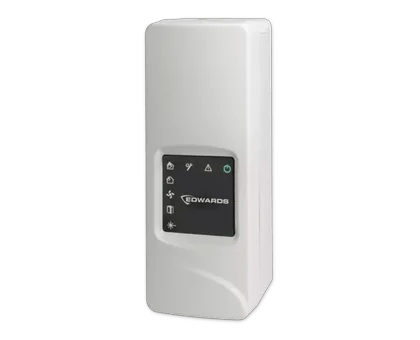

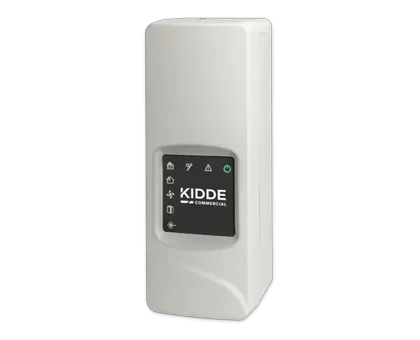

Minimum display

The simplest ModuLaser display: status LEDs only, with the same detector modules and SenseNET network as the other variants.

Status LEDs only
Up to 8 detector modules
Zone alarms can reach the fire panel through an APIC address card
Same detector modules as every other display

Brochure Datasheet

8

detector modules per display

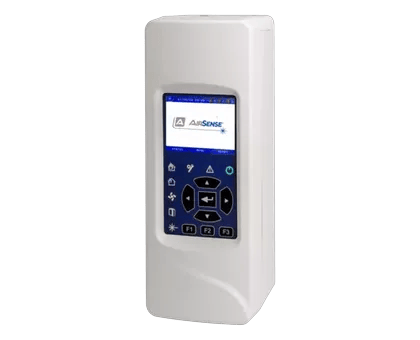

Standard display

Adds a bright colour TFT display and navigation buttons for on-site status, programming and diagnostics.

Colour TFT display and status LEDs
Universal navigation and control buttons
Up to 8 detector modules
USB, IP and APIC on the display module

Brochure Datasheet

8

detector modules per display

Command display

Everything in the Standard display, plus control of multiple modules across the SenseNET network from a single point.

All Standard display features
Controls modules over SenseNET
Up to 127 detector modules
RS-485 SenseNET and SenseNET+

Brochure Datasheet

127

detector modules across SenseNET

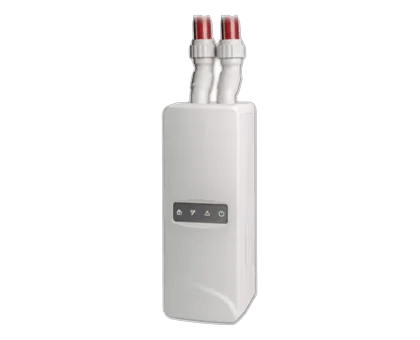

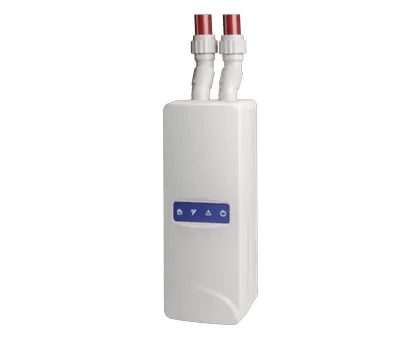

Detector module

Separate, centrally controllable detector modules allow efficient piping and discrete zones with no overlap.

Docking-station design for easy group connection
Pipe and cable entry at top or bottom
Quick-fit pipe adaptor system
Up to 20, 40 or 50 sampling holes for Class A, B or C

Brochure Datasheet

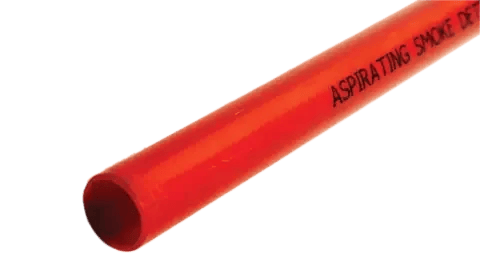

250 m

of combined sampling pipe

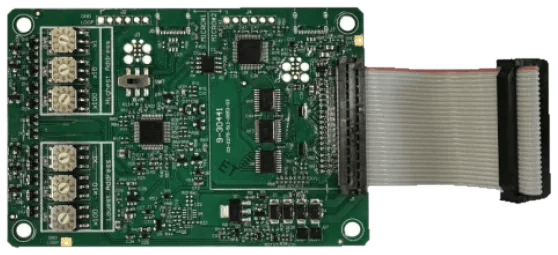

Excellence APIC card

The addressable panel interface card plugs into the display module, so every detector in the cluster or on the SenseNET network reports to the Excellence fire panel on the addressable loop.
